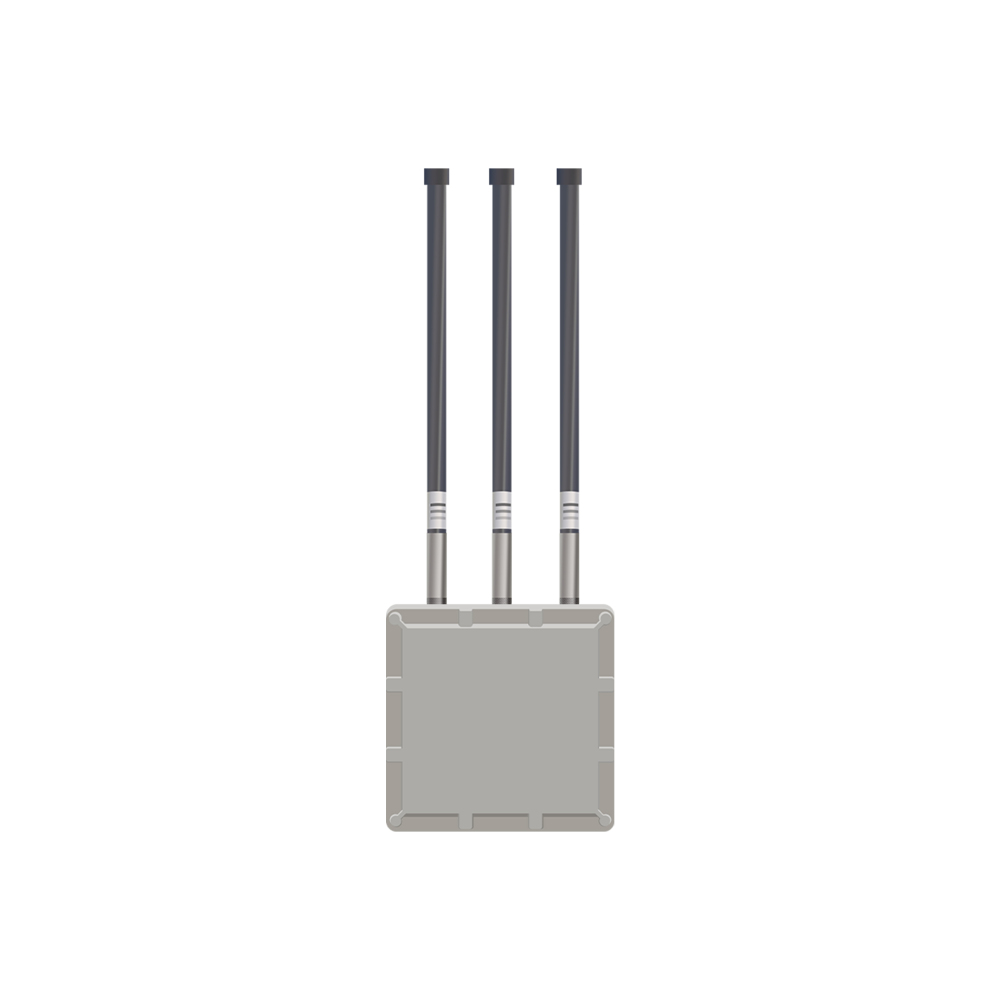

RR-Vision

RR-Vision

1.1Main Specifications

BLE：-97dBm

BLE-Long Range：-105dBm

WiFi Beacon +WiFi NaN: -85dBm

Data Parameters:

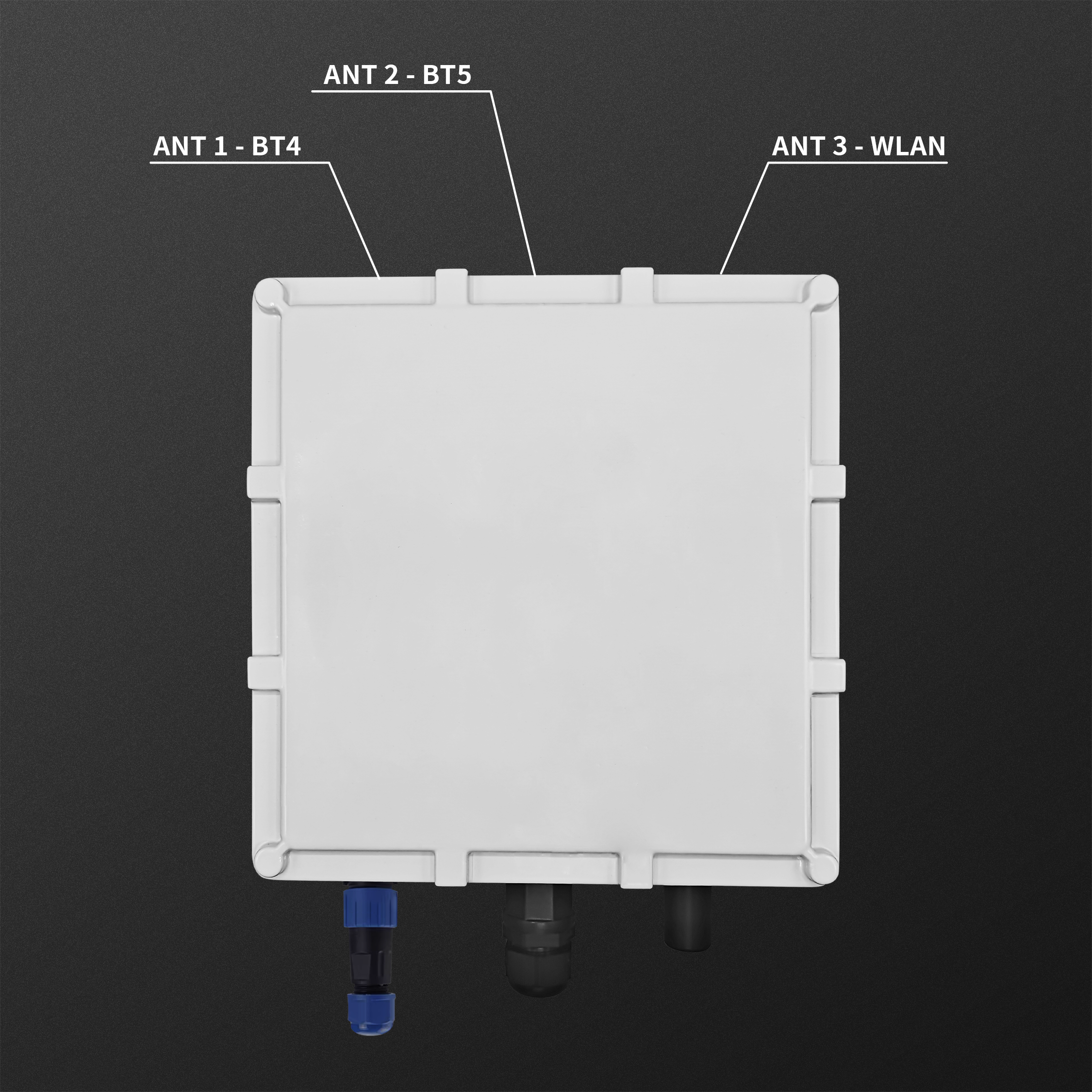

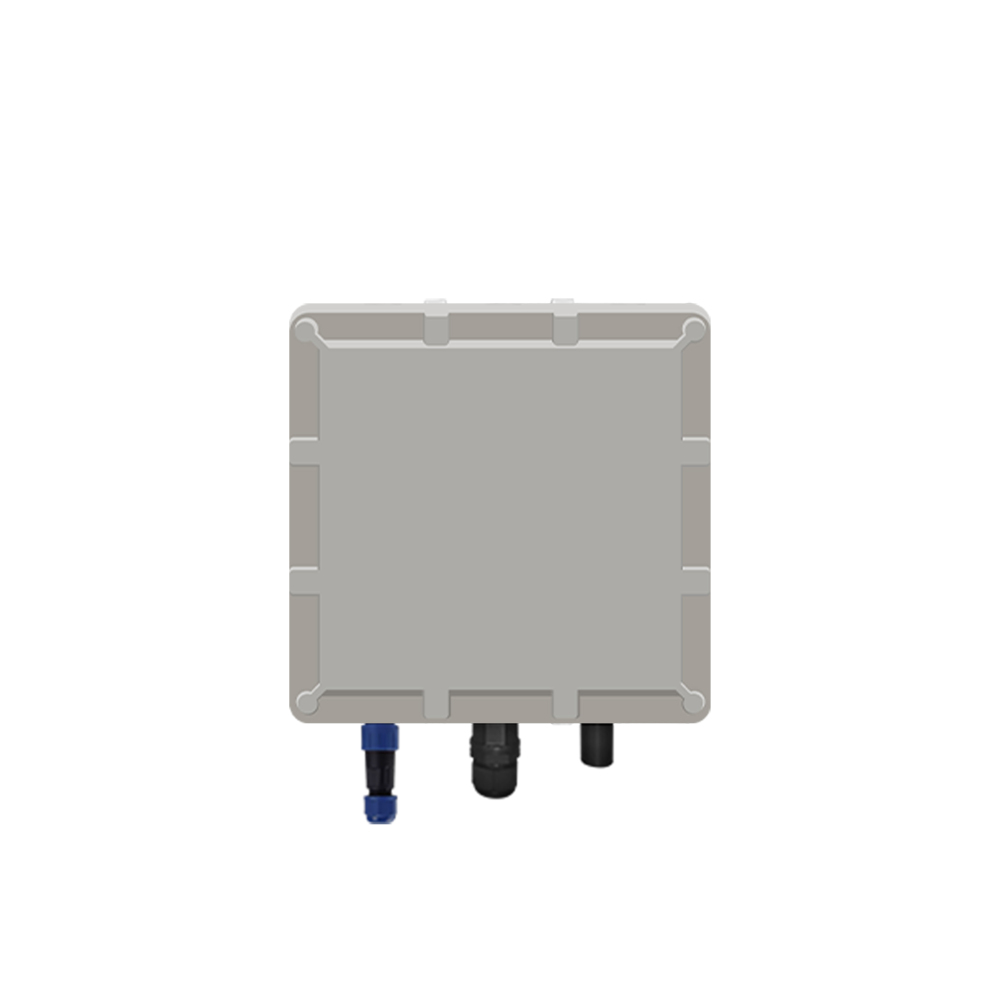

Connection Interface:

2*Bluetooth Antenna Connector (N-type)

1*WiFi Antenna Connector (N-type)

1*Quad Power Connector

1*RJ45 Network Connector

1*4G Antenna (4G version only)

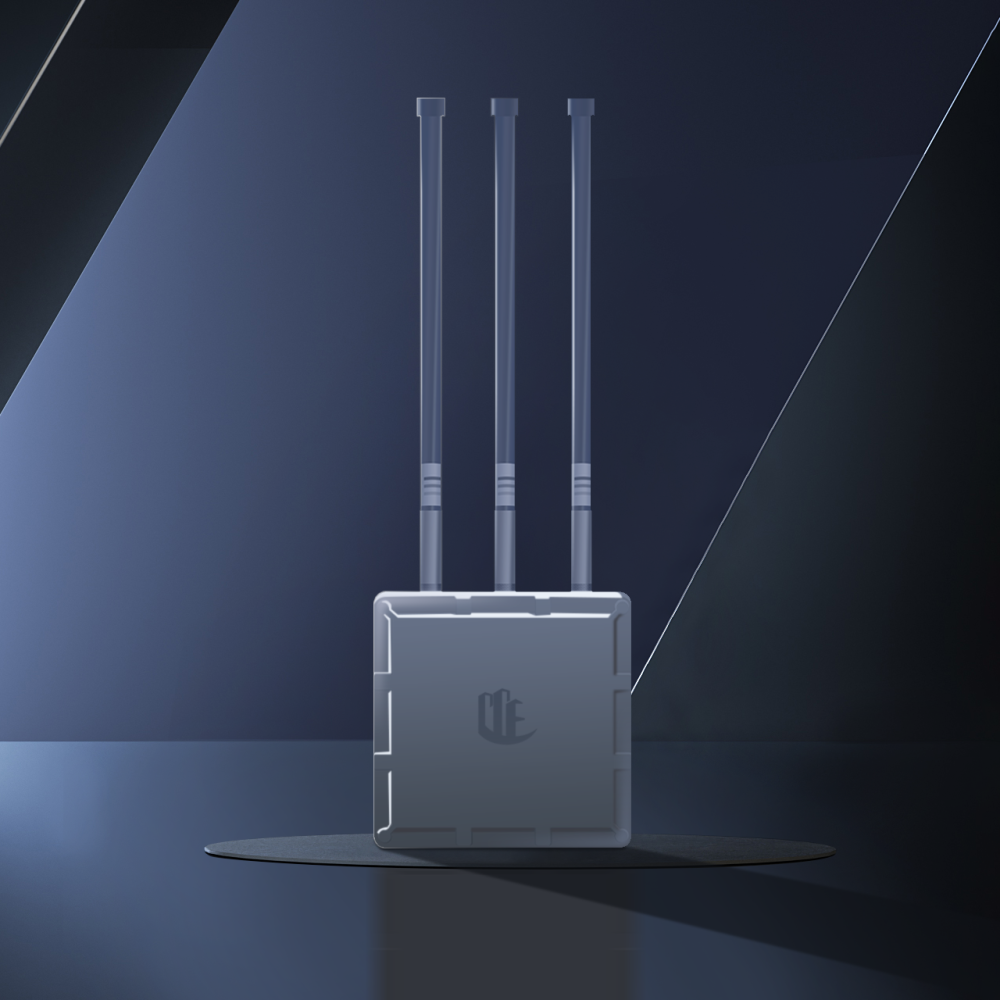

The RR-Pioneer Vision Remote Identification Ground Station consists of multiple radio reception channels for receiving remote identification signals, with reception protocols in accordance with international standards.

1.2 Bluetooth scanning

The Bluetooth receive channel continuously scans for Bluetooth BLE and Bluetooth BLE-Long Range packets with a remote ID payload.

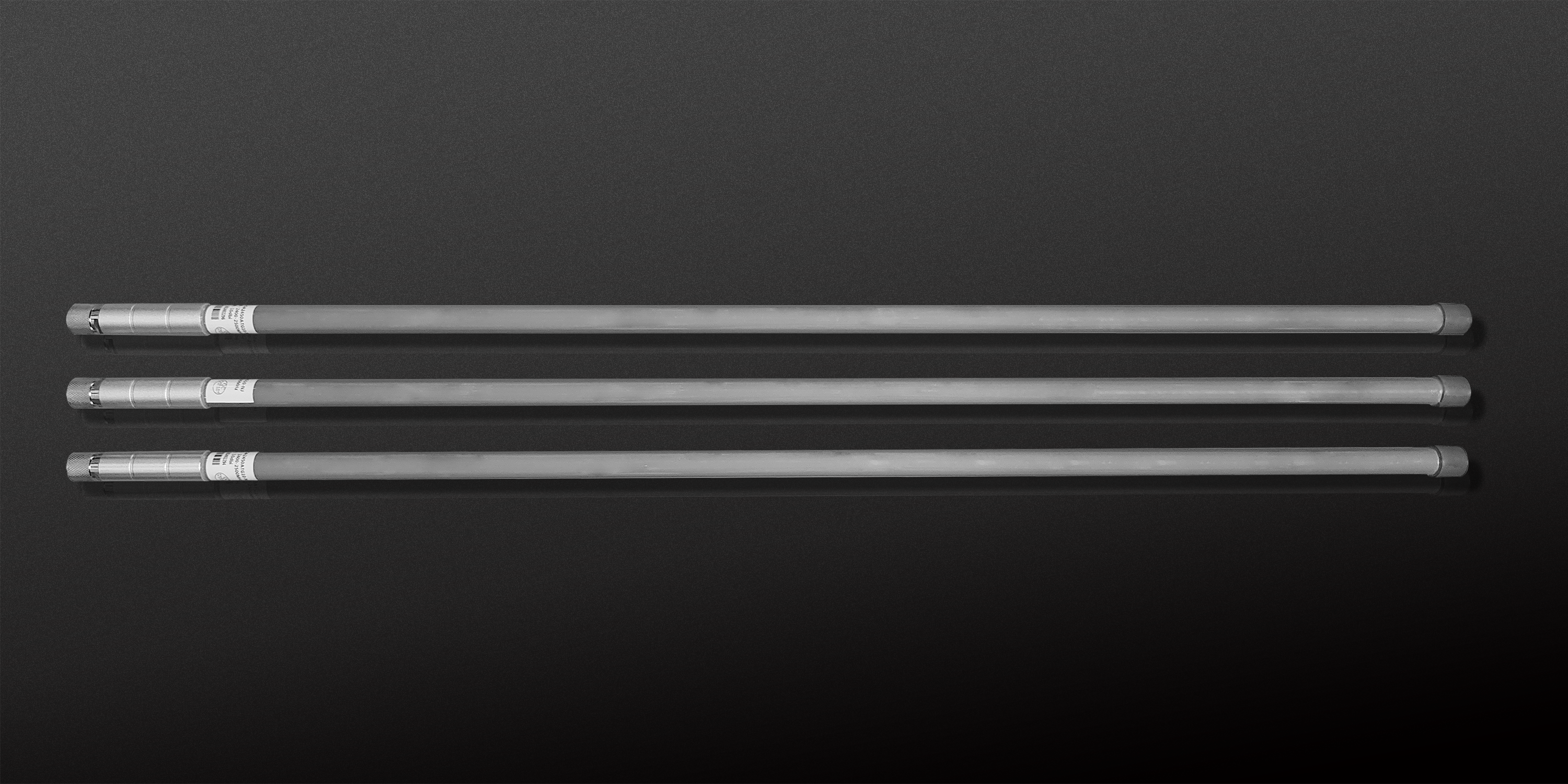

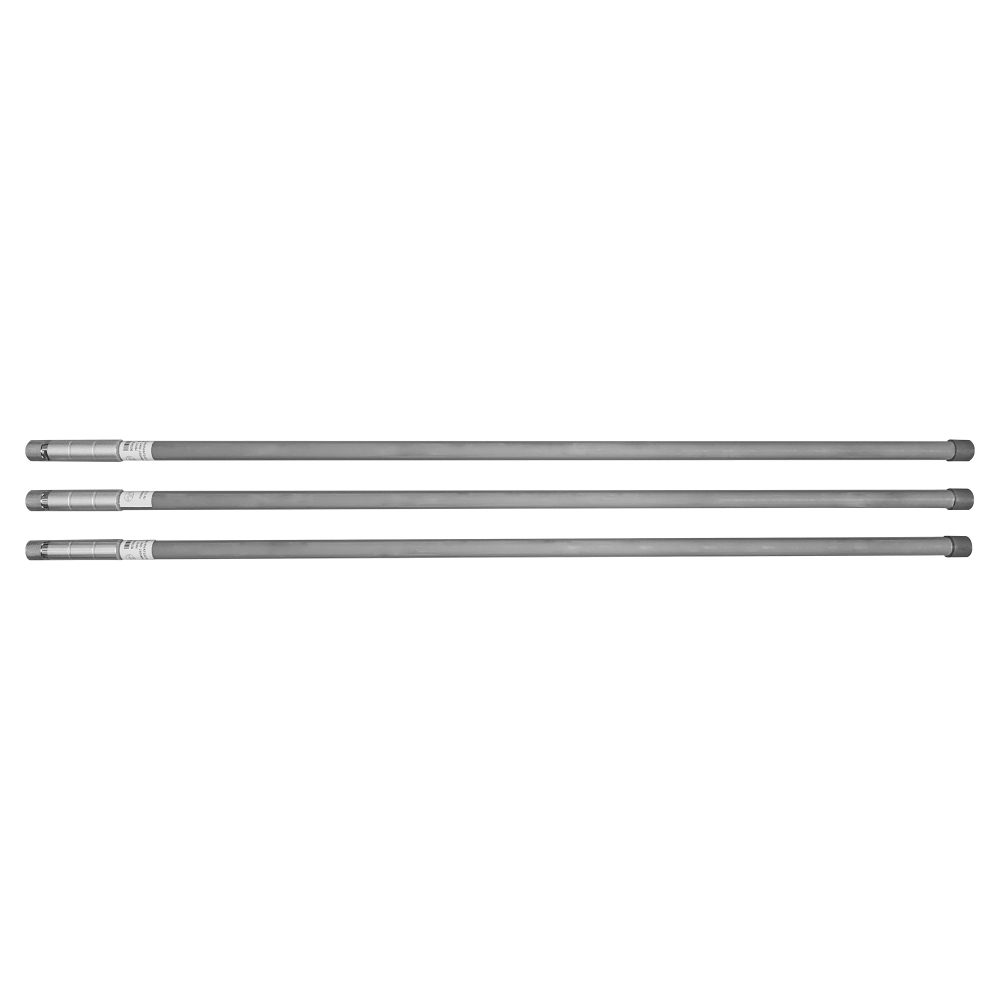

1.3 Antenna reception

Three independent receiving channels continuously scan for radio signals with remote ID payloads and demodulate the output in real time.

1.4 Firmware upgrade

Supports remote upgrade over 4G or wired network.

1.5 Installation Guidelines

1.Mount the receiver to the pole using the supplied pole hugger bracket.

1.5.1 Building materials

Building materials (wood, concrete) block wireless signals. This means that if the receiver is blocked by such objects, its detection area is reduced. This is especially true for the 5 GHz band. Additionally, this can create blind spots within the detection area, making it impossible for the drone to be detected. Therefore installing multiple receivers to repeatedly cover an area from different directions is a solution to avoid blind zones.

1.5.2 Height

The preferred mounting height is 2-40m. The lower the mounting height and the closer to the ground, the more the detection antenna is blocked and the smaller the detection range. On the other hand, mounting the receiver in a higher position will significantly increase the detection area.

1.5.3 Angle

Use an omni-directional antenna for the receiver. The receiver should be mounted vertically (perpendicular to the horizontal plane), tilting or laying flat will seriously affect the reception.

1.5.4 Power Supply

The receiver requires a 12V or 48V DC power supply.

1.5.5 Data Connectivity

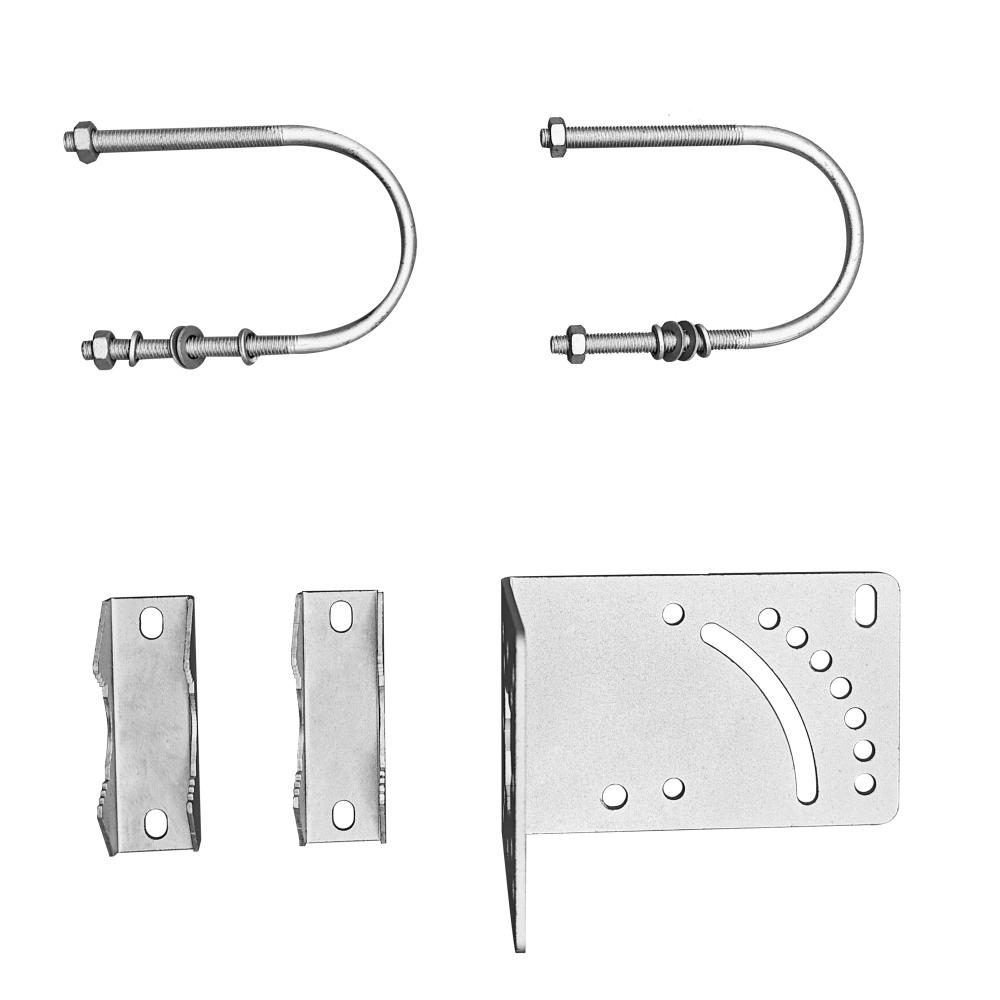

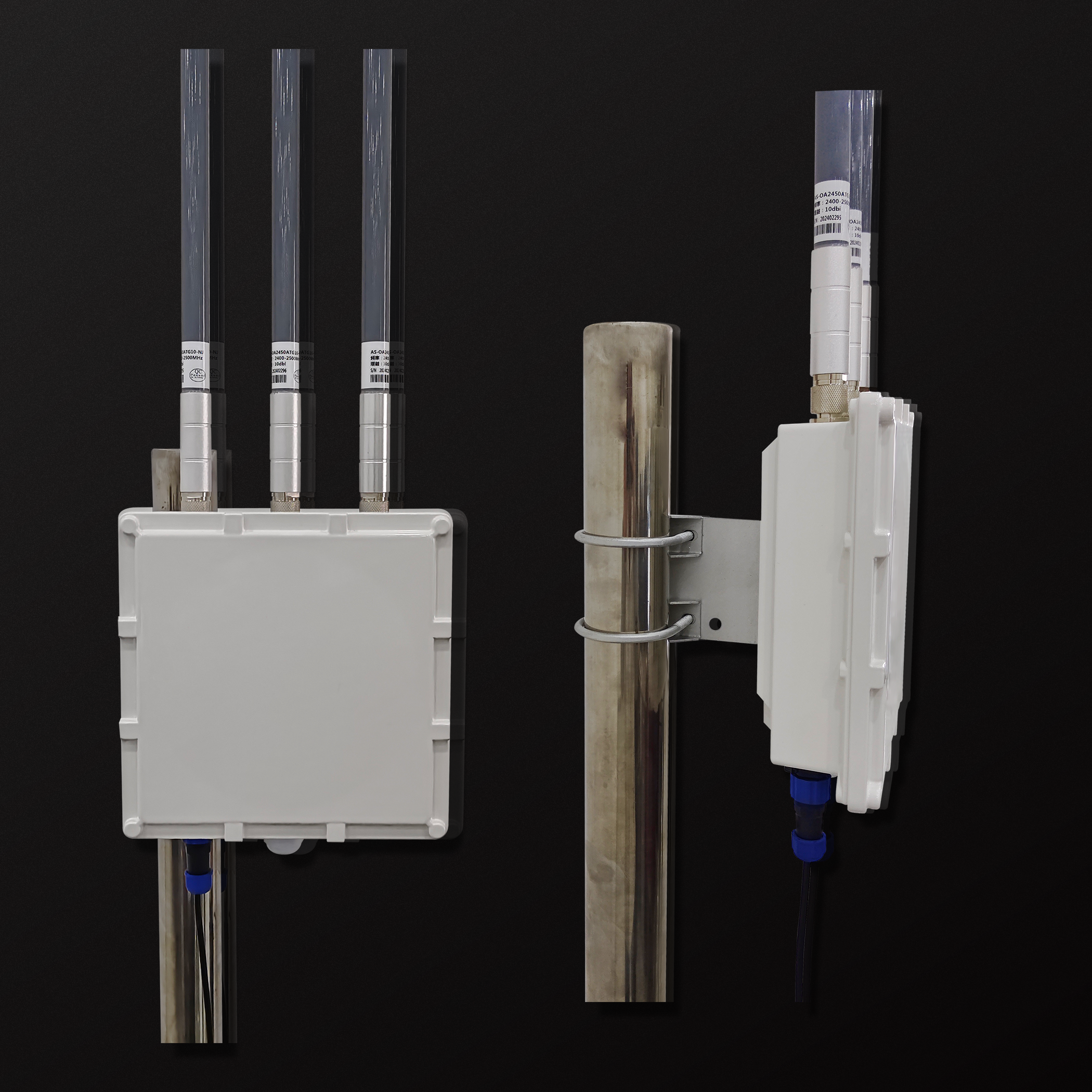

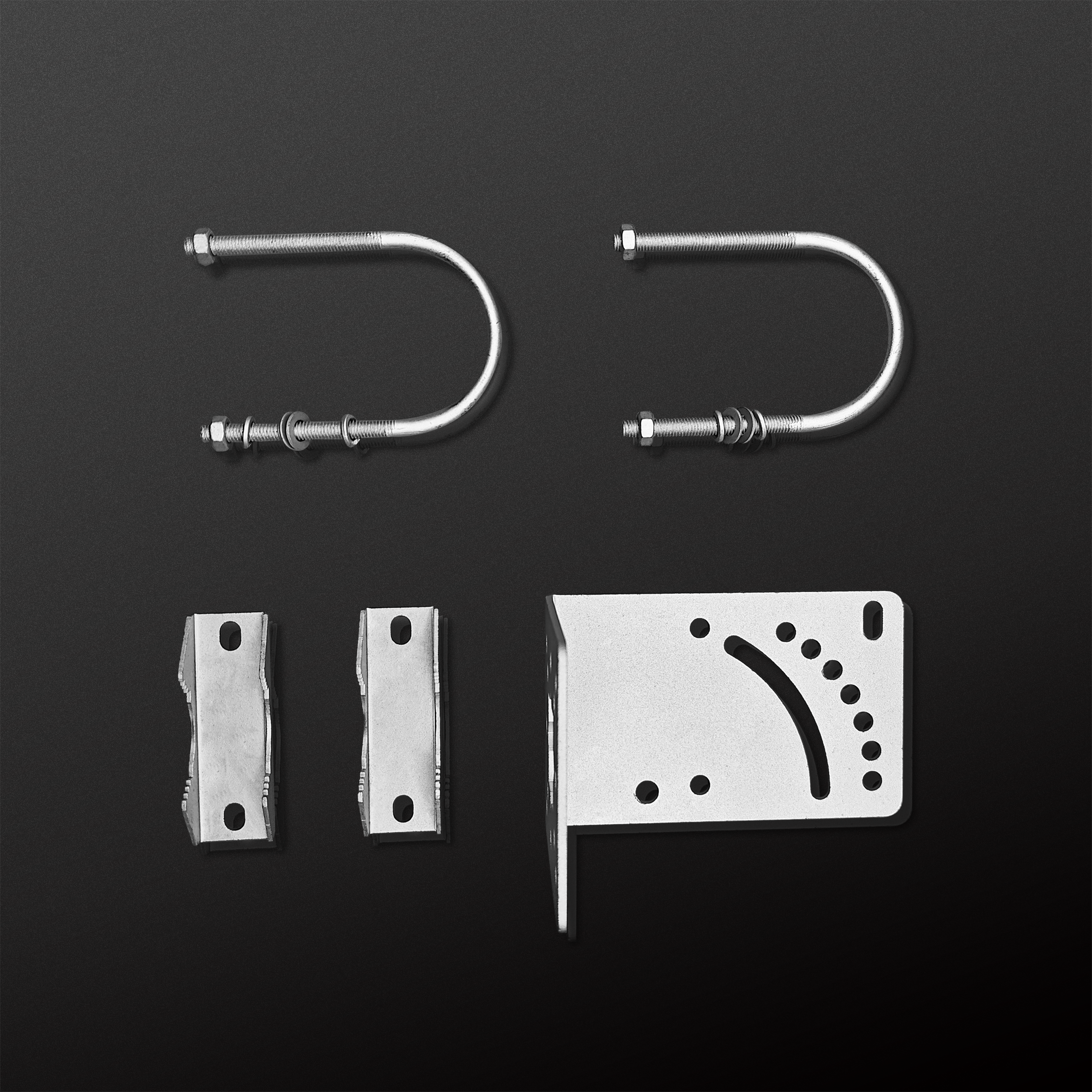

1.5.6 Pole Mounting

A pole mounting bracket is provided for each receiver, which can be used to mount the receiver on a pole or directly on the wall, please refer to the following mounting schematic.
