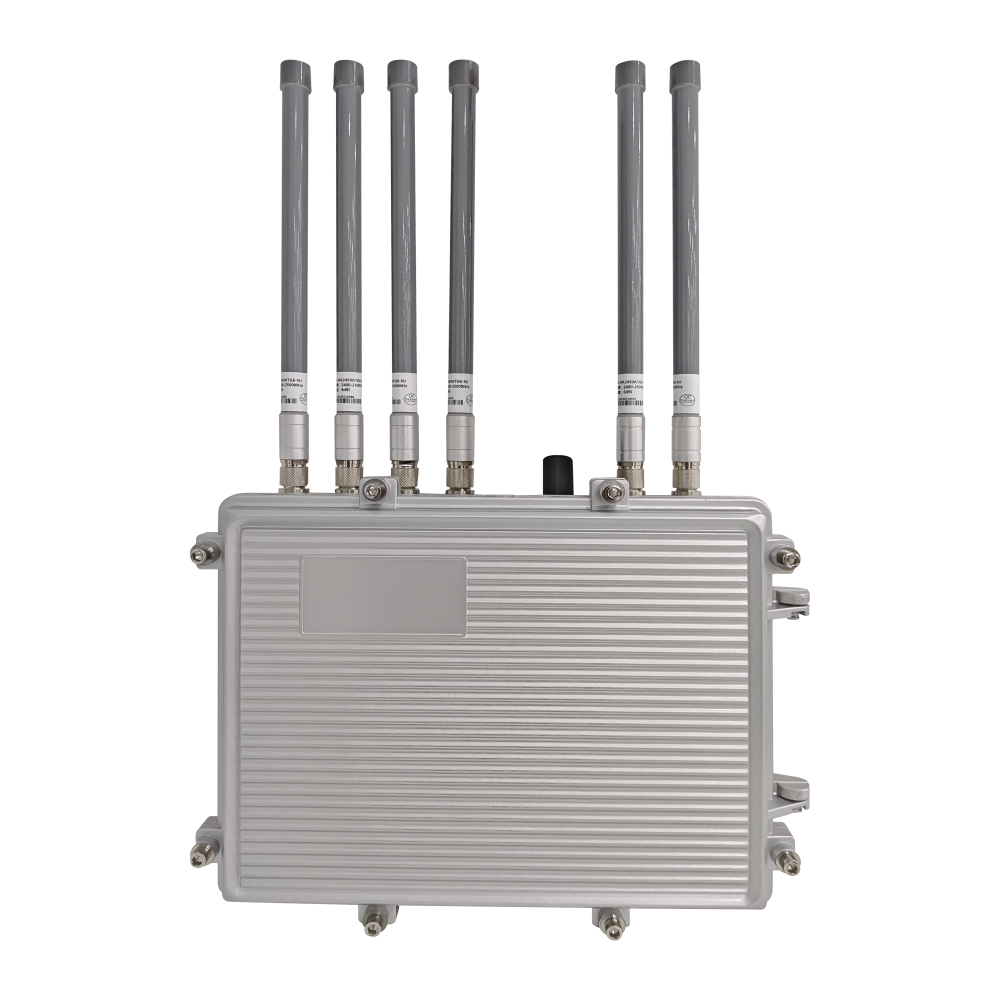

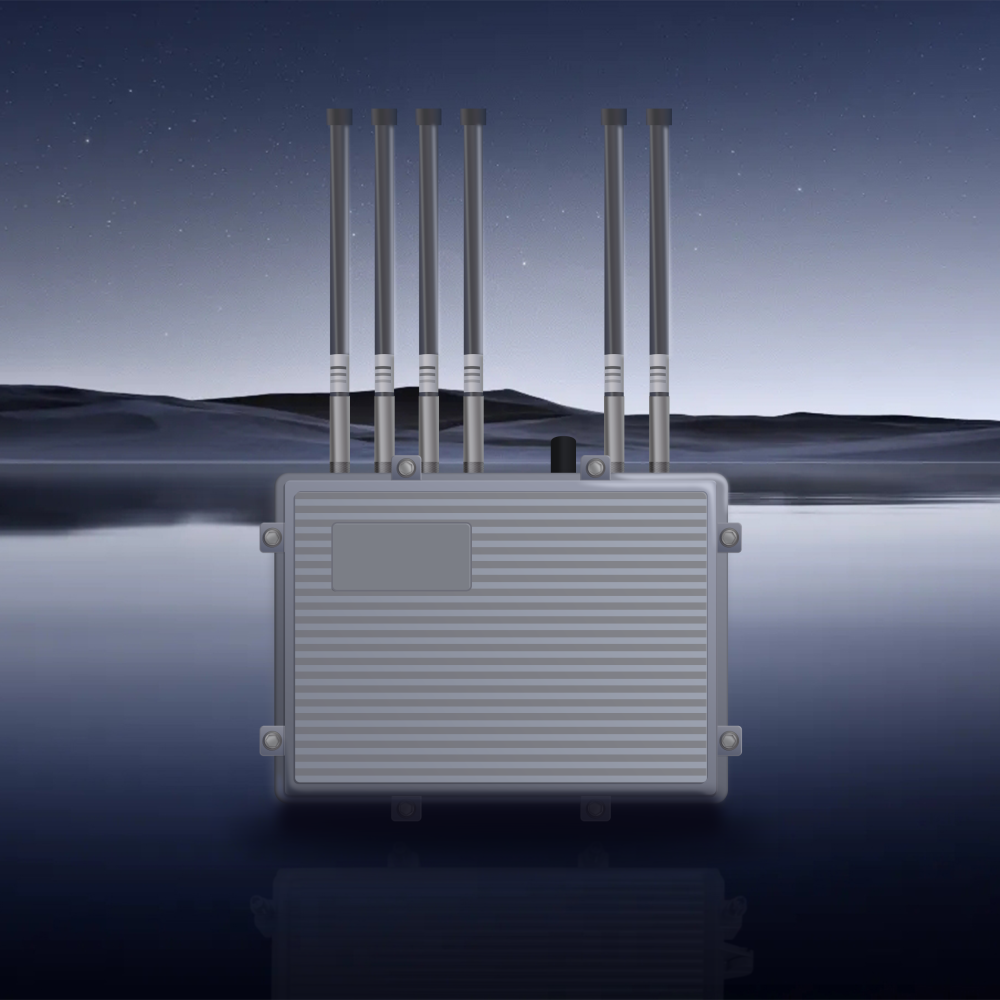

The low altitude radio detection and analysis ground station is a ground receiving station integrating Drone remote identification, flight control link protocol analysis, ADS-B and AIS. The drone remote id module is composed of four radio receiving channels for receiving remote id signals, and the receiving protocol is in line with international standards.
1.Receiver Sensitivity:
BLE：-97dBm
BLE-Long Range：-105dBm
WiFi Beacon +WiFi NaN: -85dBm
AIS：-115dBm
ADS-B:-97dBm
DJI 02/03:-98dBm
2.Data Parameters:
|
Power Wastage |
<20 W |
|
Power Supply |
12V or 48V DC |
|
Antenna Type |
Omnidirectional Antenna |
|
Size |
337*263*86mm(without antenna) |
|
Weight |
Approx. 4.3kg(without antenna) |
|
Working Temperature |
-35℃~+85℃ |
|
Protection Class |
IP65 |
|
Actual Detection Area |
RemotelD:80km²/radius 5km, ADS-B:400km,AlS:100km,DJl O2/3: 5km(The actual detection area size depends on the installation location, such as height and blocking of large buildings.) |
3.Connection Interface:
1* Four-core Power Connector
1*RJ45 Network Connector
4.Antenna Reception
The six independent reception channels are:
Remote ID BT4/5,2.4G WiFi,5.8G WiFi,AIS,ADS-B,DJI O2/3.
5.Data Connection
6.Firmware Upgrade
Supports remote upgrades for 5G or wired networks.
